Product description

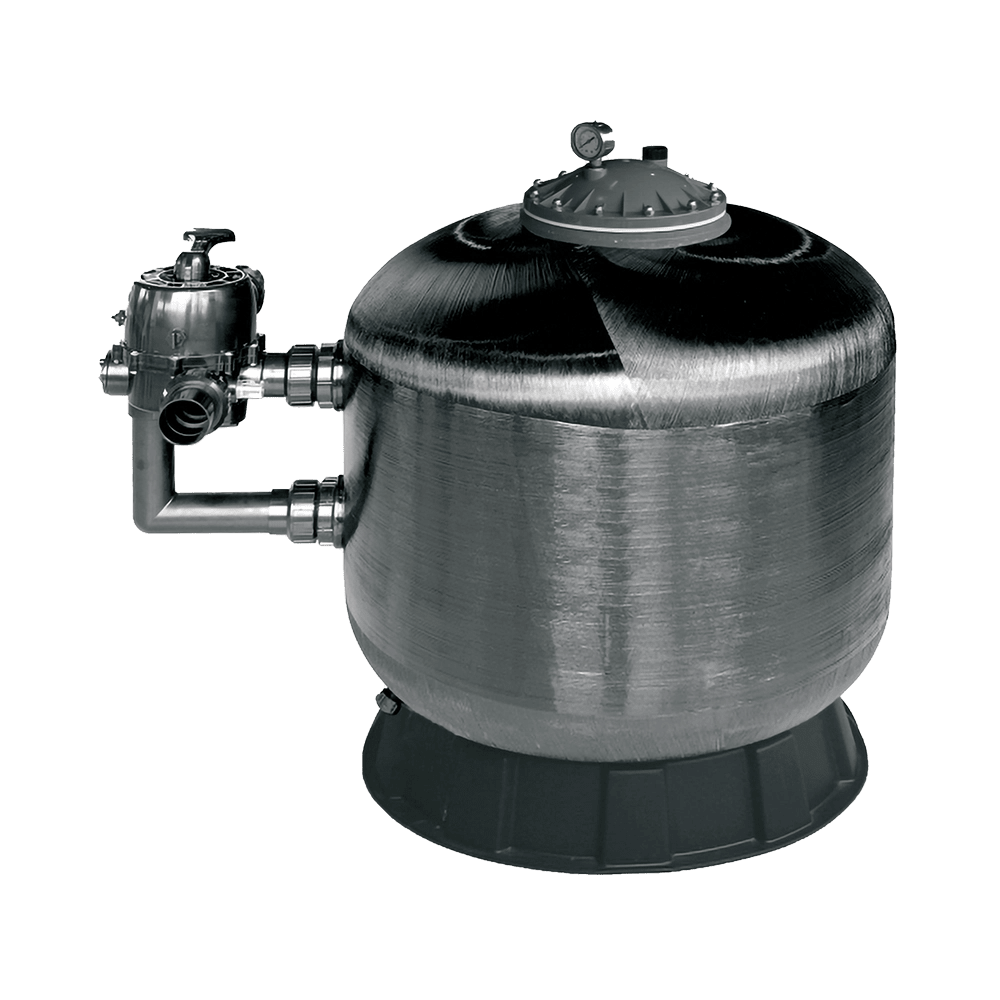

Side Mount FG Fiberglass Sand Filter are known for their reliability, Fitted with pressure gauge, manual air and water purge valves. Easy clean and maintenance.
Sand filter, laminated with polyester / fibreglass resin.
Equipped with collectors of 1" diameter and diffuser of highly resistant PVC
Fitted with pressure gauge, manual air and water purge valves
Side mount 6 way multiport valve
| Specification | 60025 | 60028 |
|---|---|---|
Max Flow Rate (LPM) | 260 | 336 |
Pool Volume | 112m³ | 168m³ |
Maximum Working Pressure | 250 kPa | 250 kPa |
Height | 850mm | 890mm |
Valve Connection (mm) | 40mm | 50mm |
Sand Media (kgs/bags) | 145 / 7 | 215 / 11 |
Glass Media Coarse (kg/bags) | 30 / 2 | 45 / 3 |
Glass Media Fine (kg/bags) | 75 / 5 | 88 / 8 |
Filter (m²) | 0.32 | 0.41 |
Tank Diameter (mm) | 635mm | 723mm |
Tank Diameter (inches) | 25" | 28" |
Part Number | 60025 | 60028 |
Tank Code | 60025T | 60028T |
MPV Code | 76062 | 76063 |
Side Mount FG Fibreglass Media Filter - Brochure
Side Mount FG Fibreglass Media Filter - Manual
