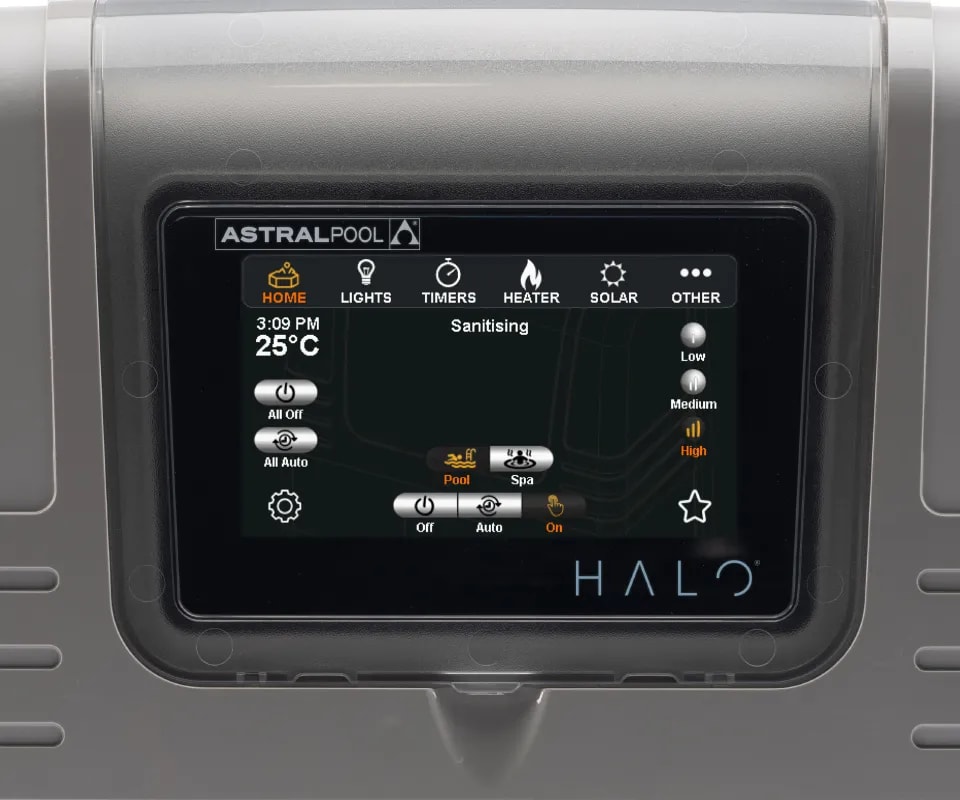

Intuitive Touchscreen
The large intuitive touchscreen interface will make navigating the menu as easy as using your smart phone
Product description

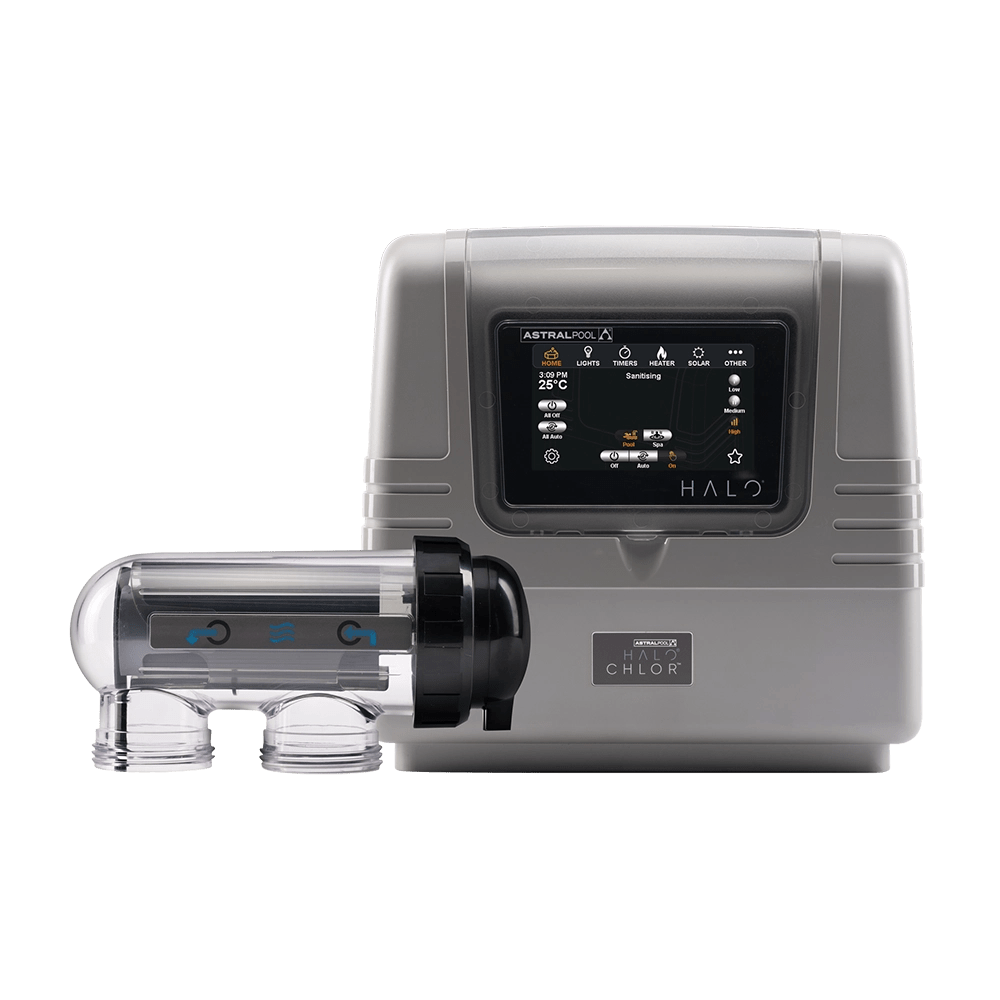

Halo Chlor is a high-performance chlorinator featuring Bluetooth and Wifi connectivity, with a range of upgrade parts to suit all your pool automation needs.
High Performance Chlorinator
Large touch screen display
Wifi and Bluetooth connectivity
Upgrades to suit your needs
The new Halo Chlor from AstralPool brings cutting edge technology to your pool, using Bluetooth® and Wifi, with a range of upgrade components to suit all your pool automation needs.
- A full circle denotes the Halo product is required for equipment to be controlled
- A half circle denotes the Halo product is optional to control the equipment
~ Halo Chlor is required for all Halo products to operate (excluding Halo Lite which can control lights independently if required)
* can communicate with AstralPool and Zodiac VS pumps for speed operation
** needs transformer
^ refer online for complete connectivity matrix
` cannot exceed 9.5 amps total load
The large intuitive touchscreen interface will make navigating the menu as easy as using your smart phone

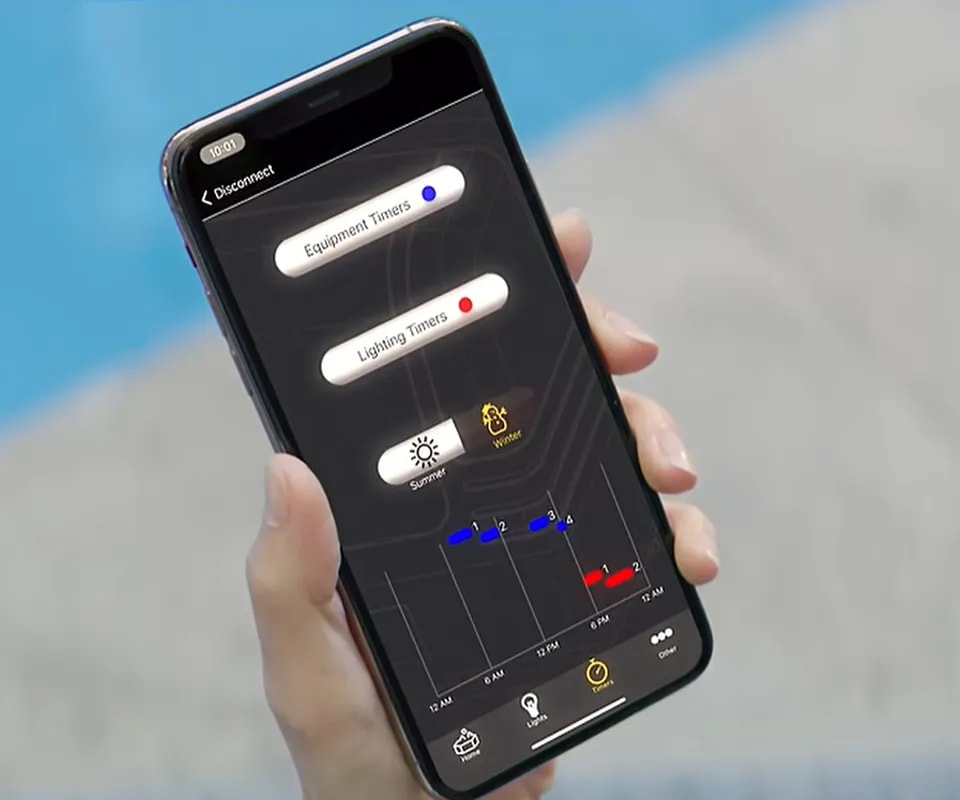

Bluetooth® and Wifi connectivity, for control at the poolside or from the other side of the world. Wirelessly connect via Bluetooth® to a range of additional devices for full control of all your pool equipment such as lights, heaters, waterfalls, blowers and more
AI mode to control your pool filtration and sanitation needs with a single touch (needs compatible pump with doser and sensors)
Add on Bluetooth® pH and ORP sensors to ensure your pool is kept healthy and in balance
Peace of mind with product developed and manufactured right here in Australia by the worlds leading manufacturer of pool equipment
| Specification | 20385 | 20386 | 20387 | 20388 |
|---|---|---|---|---|
Product Code | 20385 | 20386 | 20387 | 20388 |
Recommended Pool Size | 40,000L | 60,000L | 80,000L | 105,000L |
Recommended Salinity | 4000ppm (at 25°C) | 4000ppm (at 25°C) | 4000ppm (at 25°C) | 4000ppm (at 25°C) |
Target Output (g/hr) | 18 | 25 | 35 | 45 |
Salinity Range | 3000ppm - 8000ppm | 3000ppm - 8000ppm | 3000ppm - 8000ppm | 3000ppm - 8000ppm |
Pump Amperage | 8.5 Amps Max | 8.5 Amps Max | 8.5 Amps Max | 8.5 Amps Max |
Power Pack Dimensions | 290mm H x 310mm W x 140mm D | 290mm H x 310mm W x 140mm D | 290mm H x 310mm W x 140mm D | 290mm H x 310mm W x 140mm D |
Cell Dimensions | 300mm L x 120mm W x 170mm H | 300mm L x 120mm W x 170mm H | 300mm L x 120mm W x 170mm H | 300mm L x 120mm W x 170mm H |
AstralPool Salt Chlorinator Range Catalogue - Brochure
Halo Connect Systems - Brochure
Halo Chlor - Manual
